VERTICAL SHAFT IMPACT CRUSHER

Complete plant solution from design to commissioning for aggregate or coal. 2 stage, 3 stage etc. including jaw crusher, cone crusher and vsi for stone crushing.

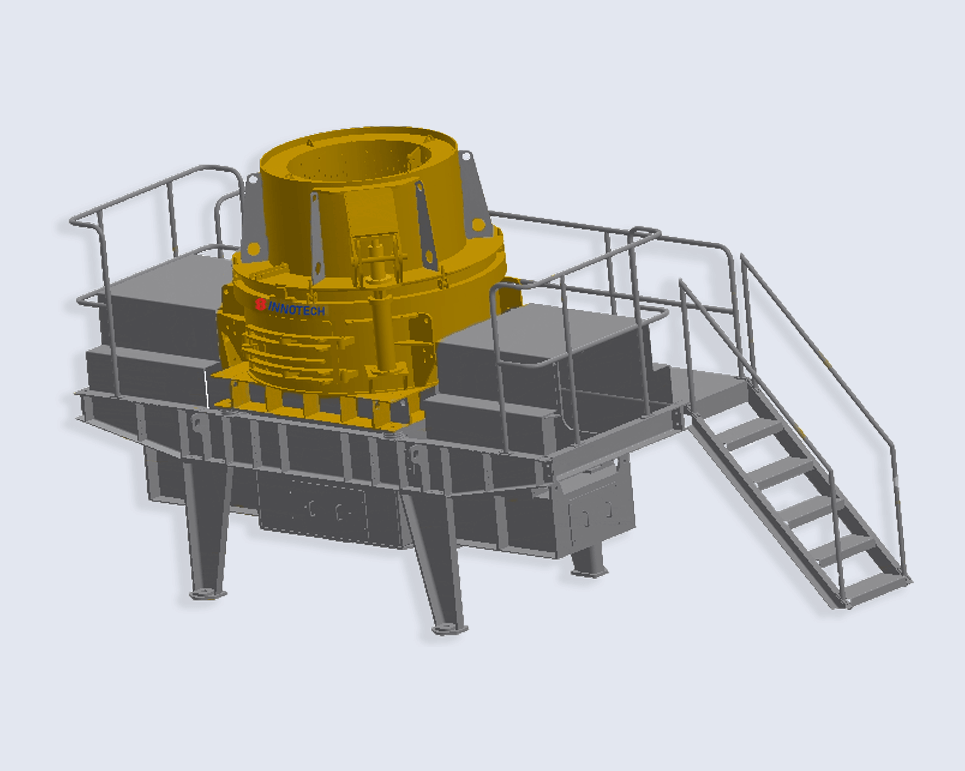

Vertical Shaft Impact Crusher

Autogenously configuration produces more spec material in a single pass. Efficient design decreases horesepower requirements. Reversible, replaceable and adjustable wear parts reduce operating cost.

Features :
  • Robust design to get lesser operating cost.
  • Optimum design to work on lesser power.
  • Wear & tear components life is more to get less maintenance cost.
  • Rotor speed is optimized on each model to get batter production capacity.
Vertical Shaft Impact Crusher Machine
Model IV 100 IV 150 IV 200 IV 250
Max Recommended feed size 40 48 53 58
Rotor Speed 45-70 45-70 45-70 45-70
Nominal Throughput Capacity 75-130 130-200 170-300 200-370
Motor Power (Hp) 150 200 250 300
