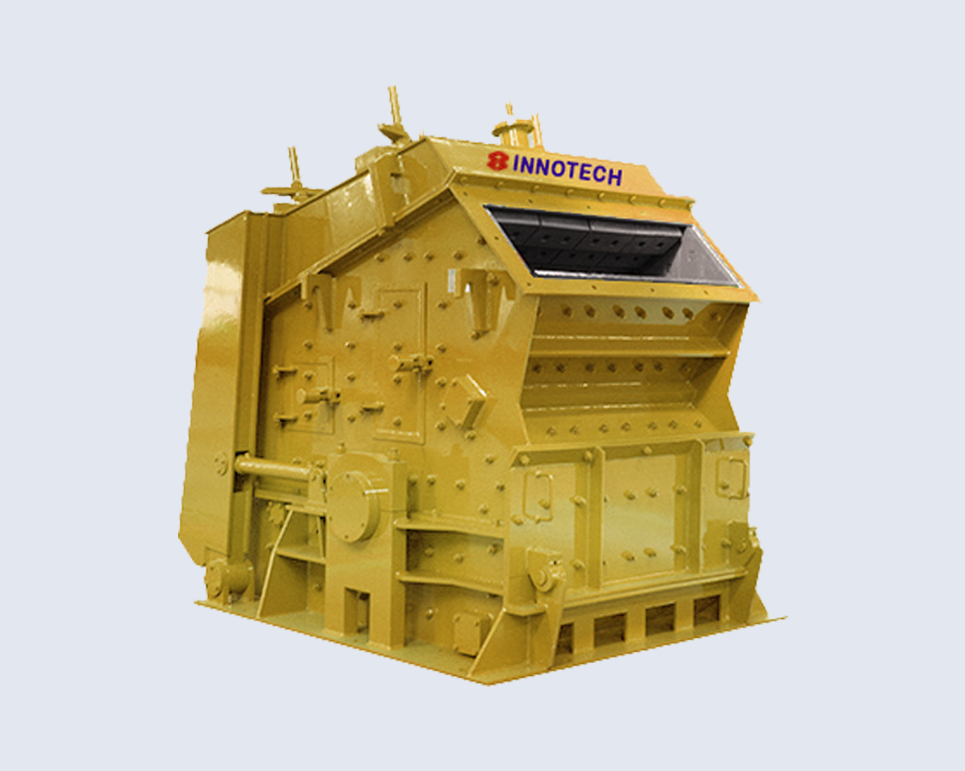

The HSI is designed in such a way that customer can achieve optimum efficiency of product. Blow bars are used of high Chrome Steel or alloys. With three- or- four -bar configuration, large feed opening and high performance rotor, INNOTECH impact crusher are well- suited for a variety of applications.
Impact plate has a special shape, with easy maintenance and reliable operation, connected with locking sleeve assembly and the blow bar of high chrome steel. Due to the robust design the maintenance cost is coming down to very low.
| Model | Rotor Diameter | Rotor Width | Motor (KW & RPM) | No. of Impact Bars | Total Equipment weight (KG) | Capacity (TPH) |
|---|---|---|---|---|---|---|
| IM 88 | 800 | 800 | 45 / 1480 | 8 | 1250 | 40-65 |
| IM 108 | 1000 | 800 | 22 / 975 | 12 | 3500 | 50-75 |
| IM 1012 | 1000 | 1200 | 90 / 1000 | 8 | 5500 | 75-120 |
| IM 1212 | 1200 | 1200 | 175 / 1485 | 8 | 6500 | 120-150 |
| IM 1414 | 1400 | 1400 | 200 / 1500 | 8 | 7800 | 150-250 |
