CONE CRUSHER

Complete plant solution from design to commissioning for aggregate or coal. 2 stage, 3 stage etc. including jaw crusher, cone crusher and vsi for stone crushing.

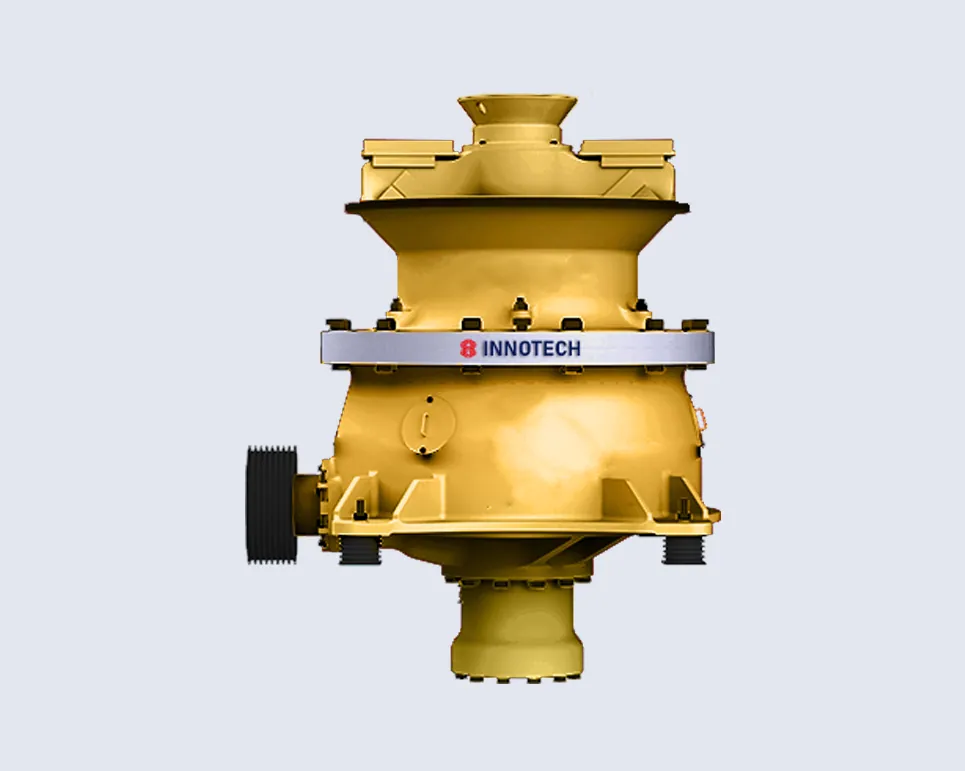

Cone Crusher

Innotech developed to crush the feed material into first class products efficiently and economically. Innotech cone crusher offer the highest crushing efficiency and end product quality with lowest cost per production. The extra weight means lower stress on the machine, which result in longer operational life, the structure improves the performance and crushing capability a lot. With the rapid development of mining technology. We also offers jaw crusher machine, aggregate and coal crushing plant

Features of Cone Crusher:

  • Large feed opening.
  • High productivity.
  • Easily adjustable setting for load/power based input and crushing material.
  • Highest production in its category.
  • Low maintenance cost.
  • Easy automation and greatest reliability.
Cone Crusher Machine
Model IEC 125 IEC 160 IEC 220 IEC 250 IEC 100 IEC 150 IEC 200 IEC 250
Feed Opening (mm) 145 180 220 230 65 75 95 95
Max. Inputsize (mm) 120 150 190 200 55 60 75 75
CSS Rang (mm) 22-28 15-35 18-40 18-40 5-15 6-18 8-20 10-22
Motor Power (HP) 100-125 125-180 180-235 220-270 100-125 125-180 180-235 250-270
Capacity (TPH) 75-160 100-225 140-320 160-340 60-90 85-140 120-185 150-24

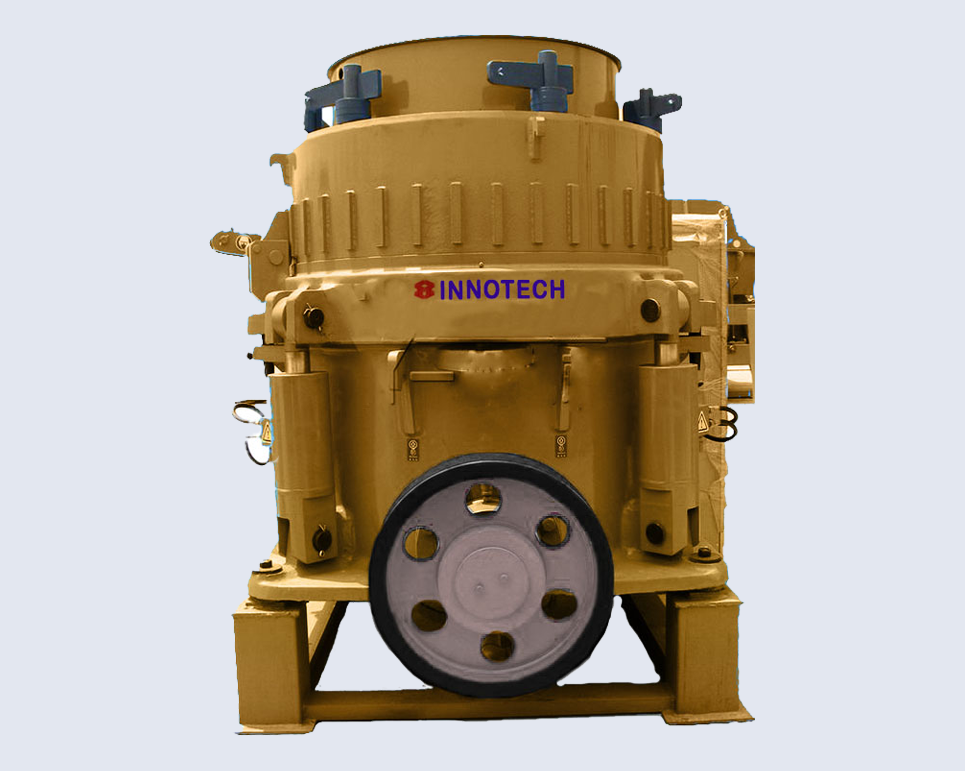

IHPC

Innotech IHPC life and maintain optimal crushing capacities, an automatic liner change reminder is included for your convenience. When the new mantle and liners are installed, the automated reminder is reset.

Crushing loads are distributed over a large spherical bearing. The socket liner keeps full contact with the crushing head ball and carries all of the vertical component and part of the horizontal. The long force arm, represented by the main shaft, reduces the load transmitted through the eccentric bushing.

Features of Cone Crusher:

  • Reasonable structure, developed crushing principle, advanced technical data, reliable work and low cost.
  • Strong crushing ability, high efficiency and large capacity.
  • Reliable hydraulic system and effective overload protection.
Cone Crusher Machine
Model IHPC 125 IHPC 150 IHPC 200 IHPC 250 IHPC 300 IHPC 350
Feed Size 160 160 185 185 235 235
CSS Range 22-32 22-32 22-38 22-38 22-51 22-51
Motor Power 120 120 220 220 300 300
Capacity 120-150 120-150 170-225 170-225 245-400 245-400
