JAW CRUSHER

Jaw Crushers are a compression-type machine that crush material between a moving piece of steel and a stationary piece of steel.

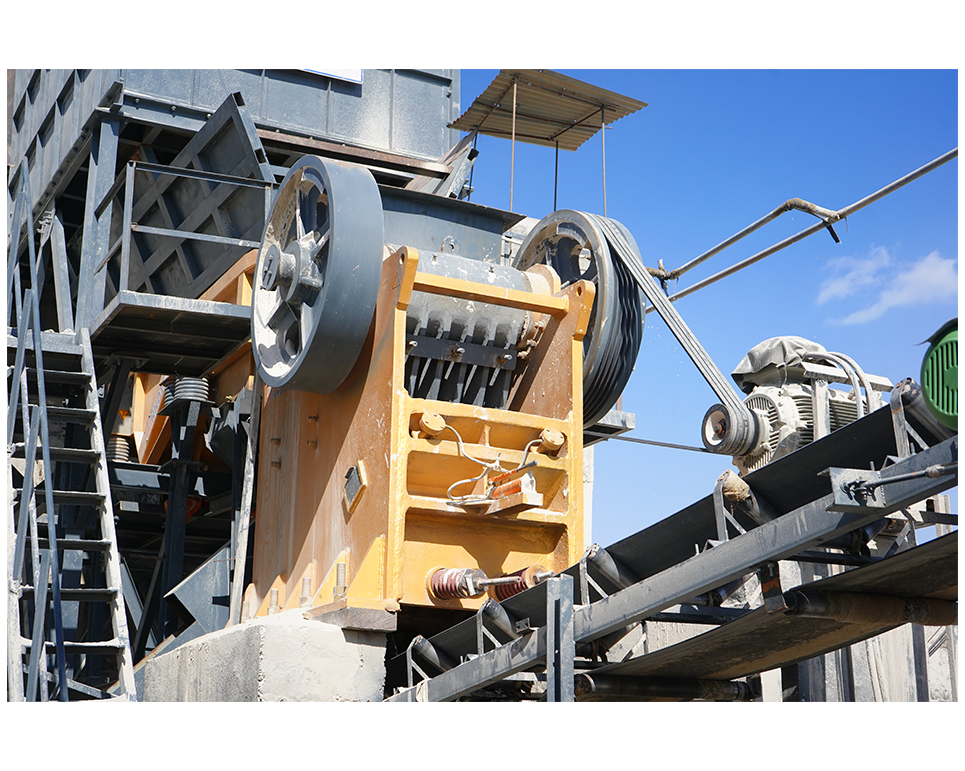

Jaw Crusher

Innotech is a leading manufacturer of jaw crusher. We manufacture larger feeding capability single toggle jaw crusher to meet customer need. Jaw crusher is a crushing machine used for crushing large materials into smaller materials. It is widely used to reduce the size of bulk material into finer particles. Innotech IJC series have different feed size opening jaw crusher.

Features :
  • Simple structure easy maintenance.
  • Massive alloy steel pitman is provided to observe shock loads.
  • Step less, safe easy and fast CSS adjustment mechanism.
  • Stable performance.
  • Large balanced flywheels supply continuous inertia to the crushing mechanism.
  • Even final particles and high crushing ratio.
  • Fully welded construction distributes even load across all directions.

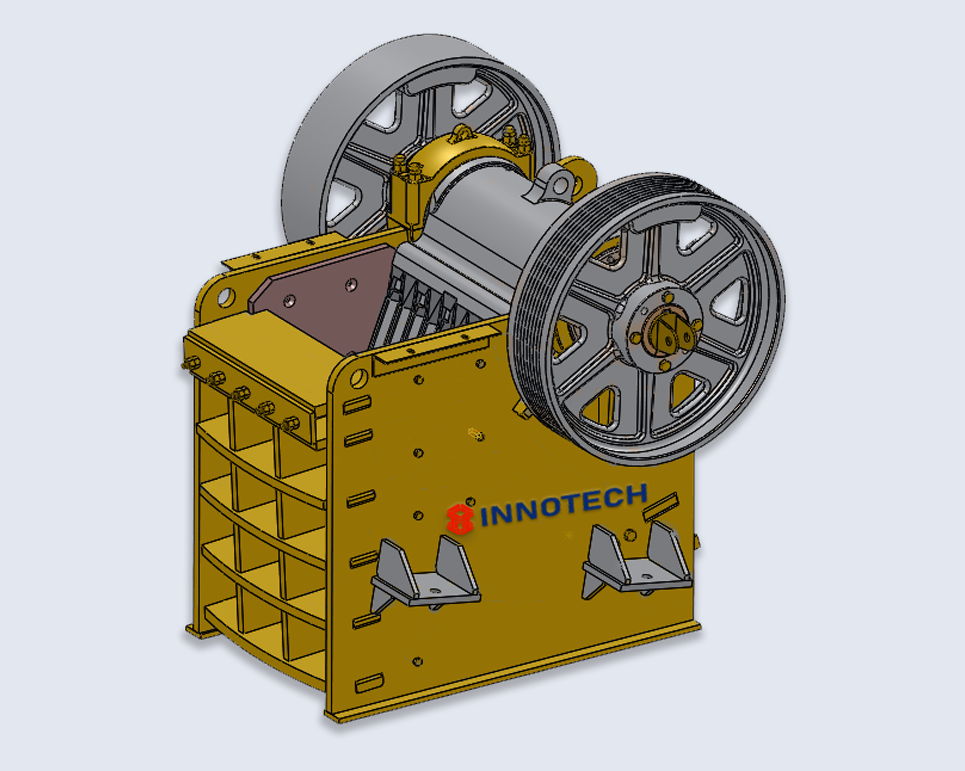

Jaw Crusher Machine
Model IJC 3042 IJC 2836 IJC 2436 IJC 1224 IJC 0836 IJC 0842
Feed Opening (mm) 750X1050 700X900 600X900 300X600 200X900 200X1050
Feed Size (mm) 700 600 450 280 185 185
CSS Rang (mm) 75-200 50-175 50-185 35-75 30-90 30-110
Capacity (TPH) 150-400 60-300 50-280 25-40 30-50 35-60
Motor Power (HP) 125 100 75 50 40 50
