Setting New Standards Of Efficiency

This is delivering over a century, of innovation for constant peace of mind. Our years of experience in the design, sales and manufacturing of centrifugal pumps has Liquid handling requirements have evolved over the years and have increased along with temperatures and pressures. Today's installations demand sturdy but quiet, smooth running pumps with longer life cycles. These modern pumps with a clean, straight forward and updated design were developed with upgraded materials of construction and a simplified offering without limiting ranges and keeping maximum interchange ability in mind.

These pumps not only exceed U.S. Department of Energy (U.S. DOE) pump efficiency standards, but also feature shared hydraulics and premium materials as standard offering. The new series offer industry-leading durability and reliability to support your liquid handling needs.

Standard Features :
  • Offered in two configurations:

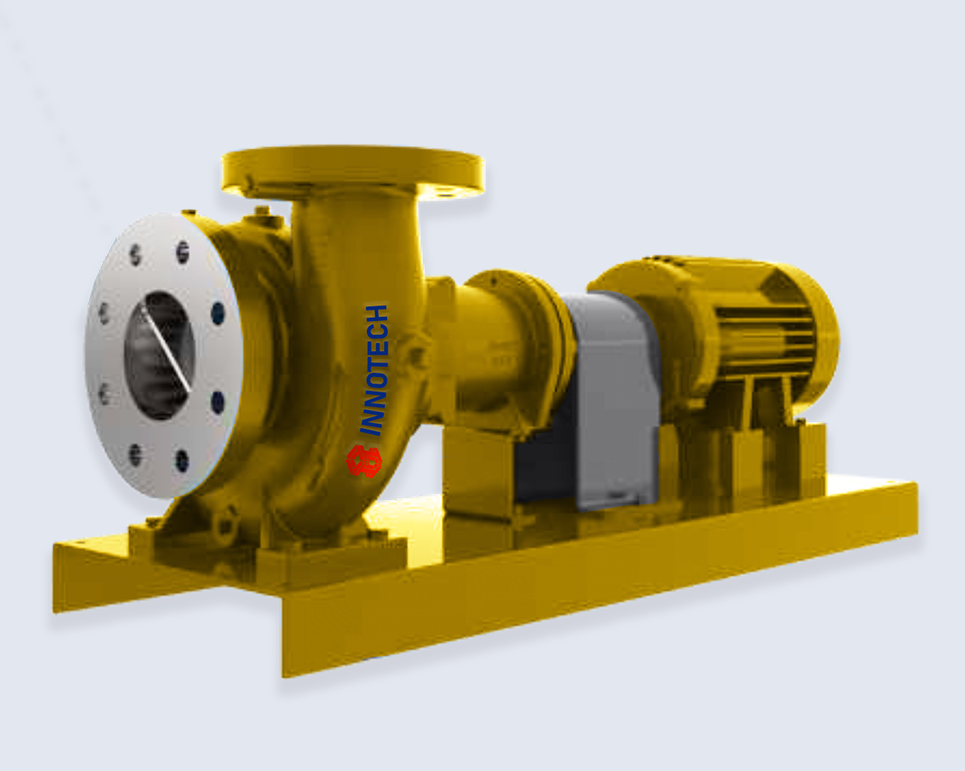

  • 3801 Close coupled
  • 3804 Flexible coupled-frame mounted
  • Ductile Iron ASTM A536 Casings provide higher strength and durability
  • Flange dimensions match the largest installed base for maximum interchangeability
  • 316 Stainless Steel impellers and shaft sleeves provide less corrosion, additional chemical resistance and durability
  • Vertical In-Line Pumps to streamline parts inventories
  • Heavyduty power frames with bearing life of 100,000 hours
  • Double volute on same 4" and all 5" and larger discharge to reduce bearing loads and increase durability. Note: Not avaliable on 4x5x13.5. Note:Single volute also available.
  • Gauge taps on suction and discharge on flanged models
  • 4 Power frame sizes
  • Standard back pullout design reduces downtime
  • Internal self-flushing mechanical seal for continuous lubrication and extended durability, eliminates the need for exterior lubricating and turbing
  • Regreaseable bearings
  • Coupling guard
  • Working pressures upto 175 PSI
  • Rigid base plate design
  • NSF 372 listing standard
